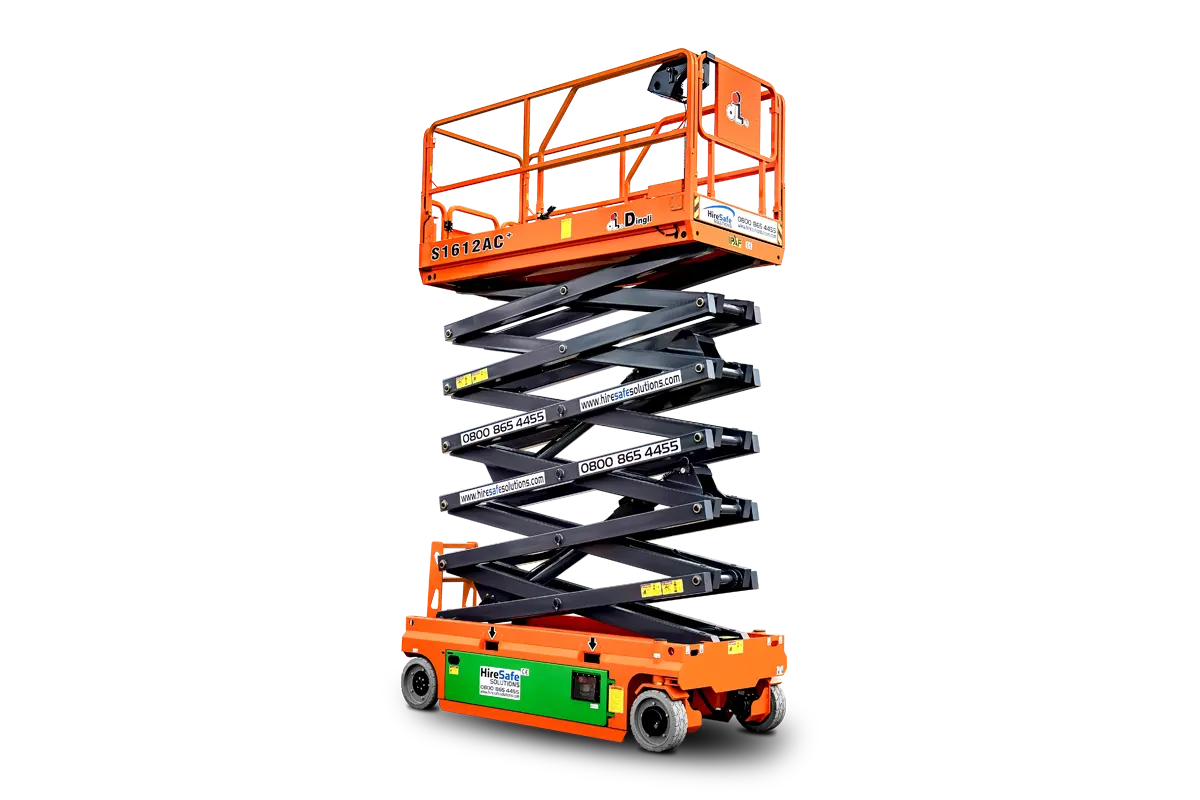

S1612AC+

Industry-Leading Load Capacity: Experience a massive performance boost with up to 45% more platform capacity than previous generations.
Versatile Transport Options: Features both side and rear forklift pockets, providing multiple ways to move the unit efficiently around your job site.
Advanced Lithium-Ion Technology: Equipped with high-density battery packs for extended work cycles and rapid charging.
Heavy-Duty, Long-Life Tires: Specialized high-strength tire compound is built to resist damage and lasts twice as long as standard industry tires.

Dimension
Max. Working Height	15.7 m
Max. Platform Height	13.7 m
Overall Length	2.84 m
Overall Width	1.25 m
Overall Height	Raised: 2.62 m Stowed: 2.09 m
Platform Size	2.64×1.12 m
Platform Extension Size	0.9 m
Ground Clearance	Raised: 0.10 m Stowed: 0.019 m
Wheel Base	2.24 m
Turning Radius	Inside: 0 m Outside: 2.65 m
Tires	ɸ381×127 mm
Performance
S.W.L	363 kg
S.W.L on Extension	136 kg
Max. Occupants	Indoor: 2 Outdoor: 0
Gradeability	25%
Travel Speed	Raised: 0.8 km/h Stowed: 6 km/h
Max Working Slope	1.5°/3°
Up/Down Speed	Up: 68 sec Down: 68 sec
Weight
Weight	3400 kg
Power
Lead-Acid Maintenance Free Battery	–
Lithium Battery	28.8V/175Ah
Charger	28V/30A
Driving Motor	2x15VACC/0.87kW
Lifting Motor	15VAC/3.42kW
