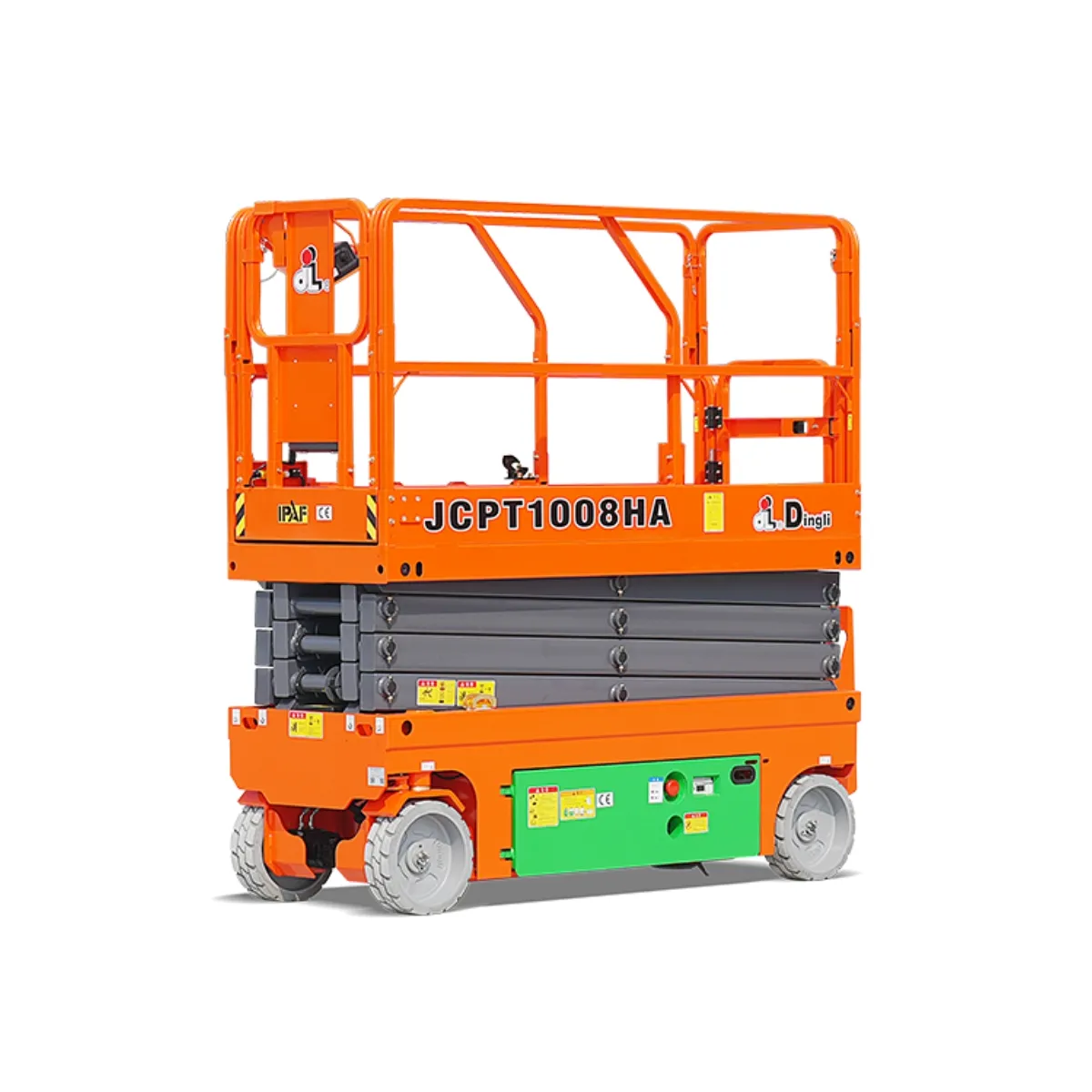

JCPT1008HA

Maximum Working Height: 10 meters
Load Capacity: 230 kg
Advanced AC Drive System: Powered by a fully sealed battery-operated AC system (for both drive and lift functions). This replaces traditional DC systems, offering a maintenance-free experience, superior waterproofing, higher efficiency, and enhanced safety.
Automatic Pothole Protection: Features an automated pothole protection system for increased safety and reliability during operation.
One-Way Extension Platform: Equipped with a unidirectional extension deck, allowing operators to reach working points quickly and efficiently.
Automatic Fault Diagnostics: The system automatically displays error codes, making troubleshooting and maintenance simple and fast.

Dimension
Max. Working Height	10 m
Max. Platform Height	8 m
Overall Length	2.48 m
Overall Width	0.83 m
Overall Height	Raised: 2.36 m Stowed: 2 m
Platform Size	2.27×0.81 m
Platform Extension Size	0.9 m
Ground Clearance	Raised: 0.10 m Stowed: 0.019 m
Wheel Base	1.87 m
Turning Radius	Inside: 0 m Outside: 2.1 m
Tires	ɸ381×127 mm
Performance
S.W.L	230 kg
S.W.L on Extension	113 kg
Max. Occupants	Indoor: 2 Outdoor: 0
Gradeability	25%
Travel Speed	Raised: 0.8 km/h Stowed: 3.5 km/h
Max Working Slope	1.5°/3°
Up/Down Speed	Up: 30 sec Down: 34 sec
Weight
Weight	2210 kg
Power
Lead-Acid Maintenance Free Battery	24/185Ah
Lithium Battery	–
Charger	24V/30A
Driving Motor	16VAC/3.5kW
Lifting Motor	16VAC/3.5kW
