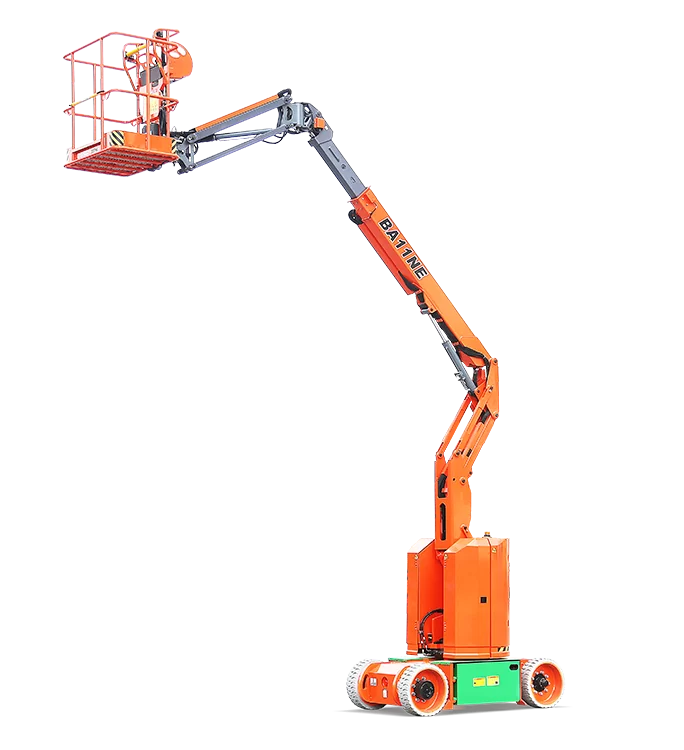

Model: BA11NE
Boom Type: Folding Boom
• Working Height: 10.80 meters
• S.W.L: 227 kg
• Capable of working at full height, specially designed for working in narrow and complex spaces.
• The 4×2 drive system is highly flexible, easy to use, and convenient to move, with a maximum obstacle-clearing lifting height of 3.8 meters and a maximum horizontal reach of 6.35 meters, enabling efficient work.
• Self-lowering weight reduction technology provides good stability.
• Powered entirely by electricity, it is silent, emission-free, energy-efficient, and environmentally friendly.
| Dimension | |
|---|---|
| Max. Working Height | 10.80 m |
| Max. Platform Height | 8.80 m |
| Max. Horizontal Reach | 6.35 m |
| Max. Up And Over Clearance | 3.80 m |
| Overall Length | 5.52 m |
| Overall Length(Stowed) | 3.90 m |
| Overall Width | 1.20 m |
| Overall Height | 2.00 m |
| Overall Height(Stowed) | 2.45 m |
| Platform Size(LxW) | 1.17×0.76 m |
| Turntable Tailswing | 0 m |
| Ground Clearance | 0.09 m |
| Wheelbase | 1.65 m |
| Tyres | 22×7 |
| Performance | |
| S.W.L | 227 kg |
| Max. Occupants(Indoor/Outdoor) | 2/2 |
| Gradeability | 35 % |
| Turret Rotation | 355° Discrete |
| Platform Rotation | 180° |
| Jib Swing Angle | 180° |
| Jib Movement | 139° |
| Travel Speed(Stowed/Raised) | 4.8/0.8 km/h |
| Max. Working Slope(X/Y) | 2.5°/4.5° |
| Turning Radius(Inside/Outside) | 1.50/3.20 m |
| Weight | |
| Overall Weight | 7080 kg |
| Power | |
| Lead-acid Battery | 48 V/280 Ah |
| Charger | 48 V/25 A |
| Driving Motor | 2×32 VAC/3.3 kW |
| Lifting Motor | 30 VAC/5.0 kW |
