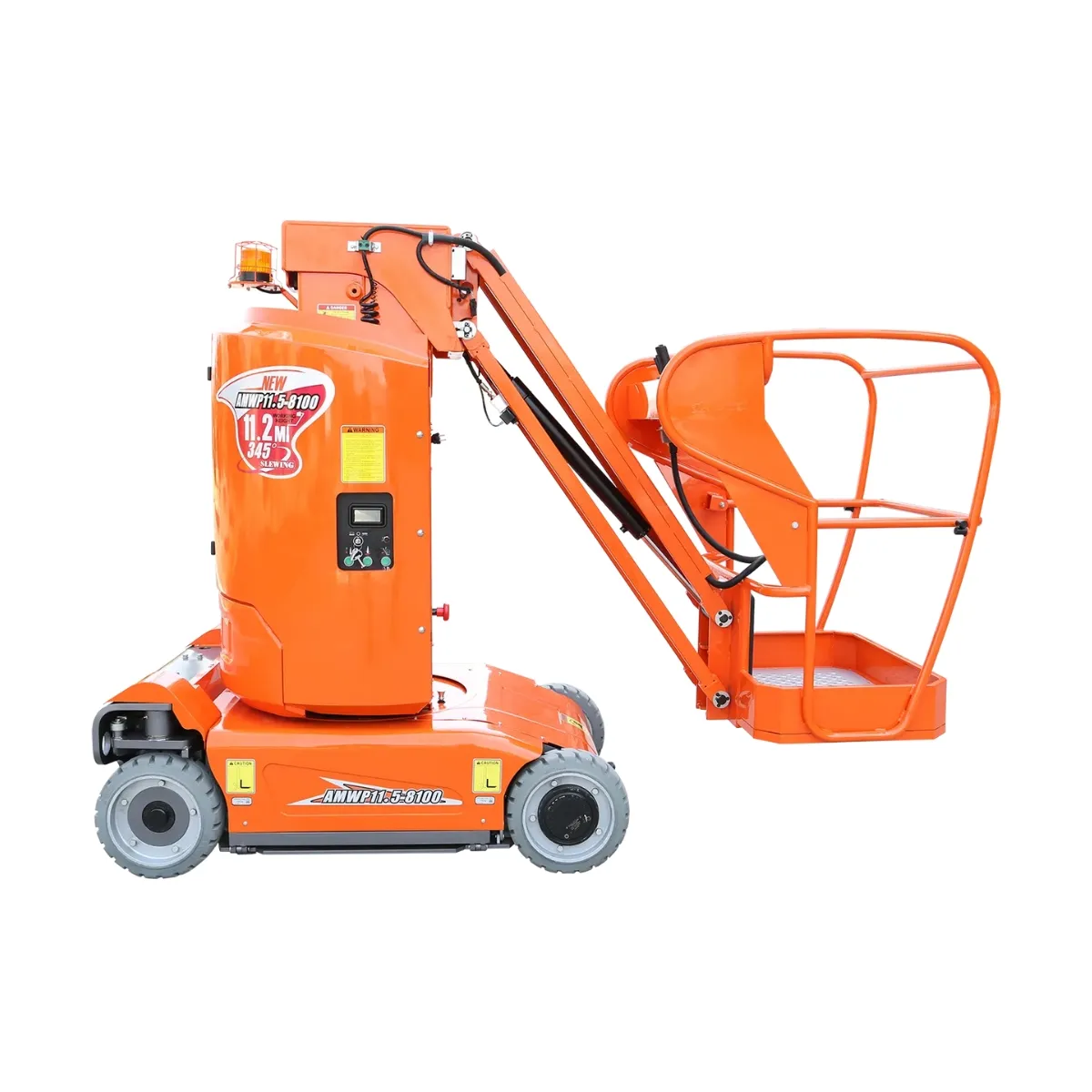

Model: AMWP11.5-8100
Boom Type: Self-Propelled Vertical Mast Lift
• Working height: 11.20 meters
• Load capacity: 200 kg
• Horizontal extension length: 3 meters
• Lightweight structure for flexible operation
• Silent operation, zero emissions
• Cylinder lock valve for added safety
• Touch screen for quick fault diagnosis and operation settings
• Automatic pothole avoidance system for increased safety and reliability
• Equipped with a high-power 24V/240Ah lithium battery with integrated charger
| Dimension | |
|---|---|
| Max.Working Height | 11.20 m |
| Max. Platform Height | 9.20 m |
| Overall Length | 2.53 m |
| Overall Width | 1.00 m |
| Overall Height | 1.99 m |
| Platform Size(LxW) | 0.62×0.87 m |
| Ground Clearance(Stowed/Raised) | 0.07/0.019 m |
| Wheelbase | 1.22 m |
| Turning Radius(Inside/Outside) | 0.23/1.65 m |
| Tyres | ɸ387×127 mm |
| Performance | |
| S.W.L (kg) | 200 kg |
| Max. Occupants | 2 |
| Gradeability | 25 % |
| Max. Working Slope | 2.5°/2.5° |
| Turret Rotation | 345° |
| Jib Movement | 130° |
| Travel Speed(Stowed/Raised) | 4.5/0.5 km/h |
| Up/Down Speed | 42/38 sec |
| Weight | |
| Overall Weight | 2950 kg |
| Power | |
| Battery | 24 V/240 Ah |
| Charger | 24 V/30 A |
| Driving Motor | 24 V/1.5 kW |
| Lifting Motor | 24 V/3.0 kW |
